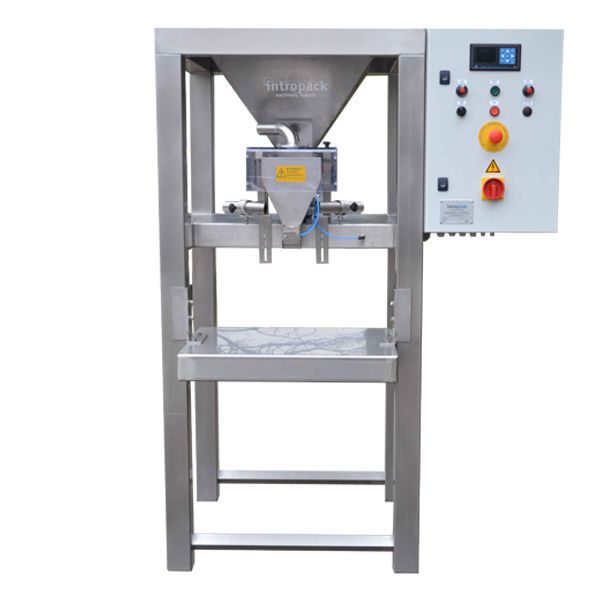

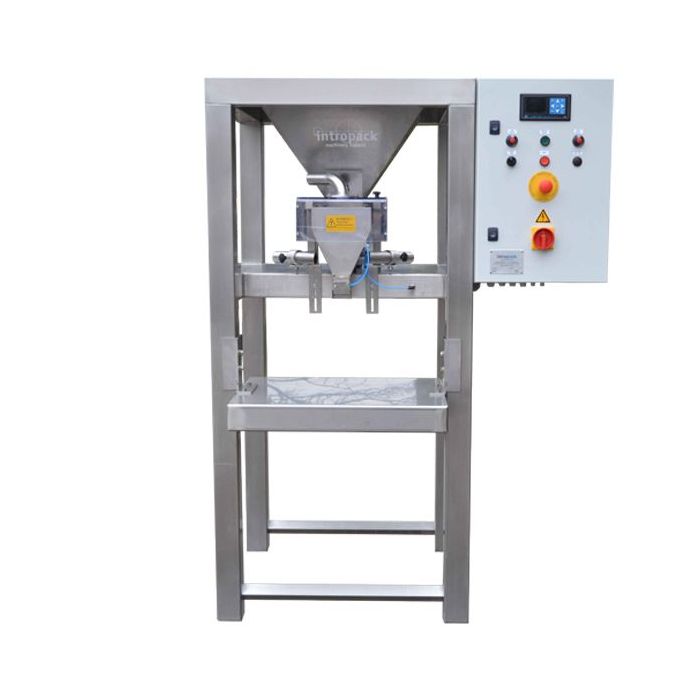

Medi weigher with vibration channel and bag clamp (max. 5kg)
Weigher equipped with a vibration channel and bag clamp. Perfect to weigh your product straight into your bag.
Products: Large range of free flowing goods (like; powders and small granulates like instant tea).
1150 x 1000 x 1800 MM
(WxDxH - medium frame)
230 Vac, 50 Hz. (single phase) and
- P.L.C. controlled and easy to operate
- A solid constructed frame
- Compact dimensions
- Deliverable in various models
- Stainless steel frame
A weighing installation to weigh semi automatically, all free flow goods e.g. in condition of powder, granulates or other small pieces in bags. The installation is built in a Stainless steel frame, equipped with an FMC vibration motor, a stainless steel vibration channel, product supply hopper and a dosing hopper with bag clamp.
When the supply hopper is filled with product, the product is dosed by means of an vibration channel right into the bag.
A keyboard with digital display controls the weighing cycle of the machine. The product is dosed into the bag in two stages (pre-dosing & fine dosing) which separately can be set.
After the set point weight is reached vibration channel stops .
The construction of this machine makes it possible to fill most of the free flowing products. But also chemical / pharmaceutical products and other food and non-food products can be filled.
The weighing system can be synchronized with packing machines or conveyor belts.
Pneumatic closing valve for fine dosing, closes when pre-dosing has reached his set point and close the gutter for about 80% (depending of your product). To get a better net weight result, if you want to weigh products that are big or heavy, per piece. Price is incl. adjustment of the PLC program.
- Pneumatic closing valve Price : € 840,--
- Extra stainless steel Bag clamp hopper, bag width up to 200mm : € 595,--
- Extra stainless steel Bag clamp hopper, bag width up to 300mm : € 745,--
- Extra stainless steel Bag clamp hopper, bag width up to 500mm : € 895,--
- A set of adjustable Dust exhaust pipes (1 x left & 1 x right) : € 420,-
- Transparent dust cover over bag clamp hopper and vibrator : € 1.080,--
Delivery time: approx. 2 weeks Delivery: Ex works For more info call direct our machine department. T: +316 129 917 80
